C3P0 Spring database connector



MuleSoft Database connector allow us to connect with any database using Spring configuration. Let’s see how we can connect with Database connector using C3P0 Spring configuration.

Create new project

C3P0 Spring database connector



Now in pom.xml add below XML fragment –

Add below in sharedLibraries

<sharedLibraries>
	<sharedLibrary>
		<groupId>org.springframework</groupId>
		<artifactId>spring-beans</artifactId>
	</sharedLibrary>
	<sharedLibrary>
		<groupId>org.springframework.security</groupId>
		<artifactId>spring-security-core</artifactId>
	</sharedLibrary>
	<sharedLibrary>
		<groupId>org.springframework</groupId>
		<artifactId>spring-context</artifactId>
	</sharedLibrary>
	<sharedLibrary>
		<groupId>org.springframework</groupId>
		<artifactId>spring-core</artifactId>
	</sharedLibrary>
	<sharedLibrary>
		<groupId>com.mchange</groupId>
		<artifactId>c3p0</artifactId>
	</sharedLibrary>
</sharedLibraries>

And below dependency in dependencies

<dependency>
	<groupId>org.mule.modules</groupId>
	<artifactId>mule-spring-module</artifactId>
	<version>1.1.0</version>
	<classifier>mule-plugin</classifier>
</dependency>
<dependency>
	<groupId>org.springframework</groupId>
	<artifactId>spring-beans</artifactId>
	<version>4.1.9.RELEASE</version>
</dependency>
<dependency>
	<groupId>org.springframework.security</groupId>
	<artifactId>spring-security-core</artifactId>
	<version>4.1.5.RELEASE</version>
</dependency>
<dependency>
	<groupId>org.springframework</groupId>
	<artifactId>spring-context</artifactId>
	<version>4.1.9.RELEASE</version>
</dependency>
<dependency>
	<groupId>org.springframework</groupId>
	<artifactId>spring-core</artifactId>
	<version>4.1.9.RELEASE</version>
</dependency>
<dependency>
	<groupId>org.apache.commons</groupId>
	<artifactId>commons-dbcp2</artifactId>
	<version>2.5.0</version>
</dependency>
<dependency>
	<groupId>com.mchange</groupId>
	<artifactId>c3p0</artifactId>
	<version>0.9.5.2</version>
</dependency>

Dependency is already available in MuleSoft central repository

Create a spring-beans.xml and add it to resource folder

<spring:beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:spring="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

	xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
    ">
	<spring:bean id="xe-datasource" class="com.mchange.v2.c3p0.ComboPooledDataSource"
		destroy-method="close">
		<spring:property name="driverClass"
			value="oracle.jdbc.driver.OracleDriver" />
		<spring:property name="jdbcUrl"
			value="jdbc:oracle:thin:@localhost:1521/xe" />
		<spring:property name="user" value="HR" />
		<spring:property name="password" value="hr" />
		<spring:property name="minPoolSize" value="10" />
		<spring:property name="maxPoolSize" value="25" />
		<spring:property name="maxStatements" value="10" />
	</spring:bean>
</spring:beans>

We need to update the mule-artifact.json also

{
  "minMuleVersion": "4.1.3",
  "classLoaderModelLoaderDescriptor": {
    "id": "mule",
    "attributes": {
      "exportedResources": [
      	"spring-beans.xml"
      ]
    }
  }
}

Add spring bean definition in global elements –

<spring:config name="Spring_Config" doc:name="Spring Config" doc:id="a3a2a010-4869-43df-85eb-1f95547f4c30" files="spring-beans.xml" />

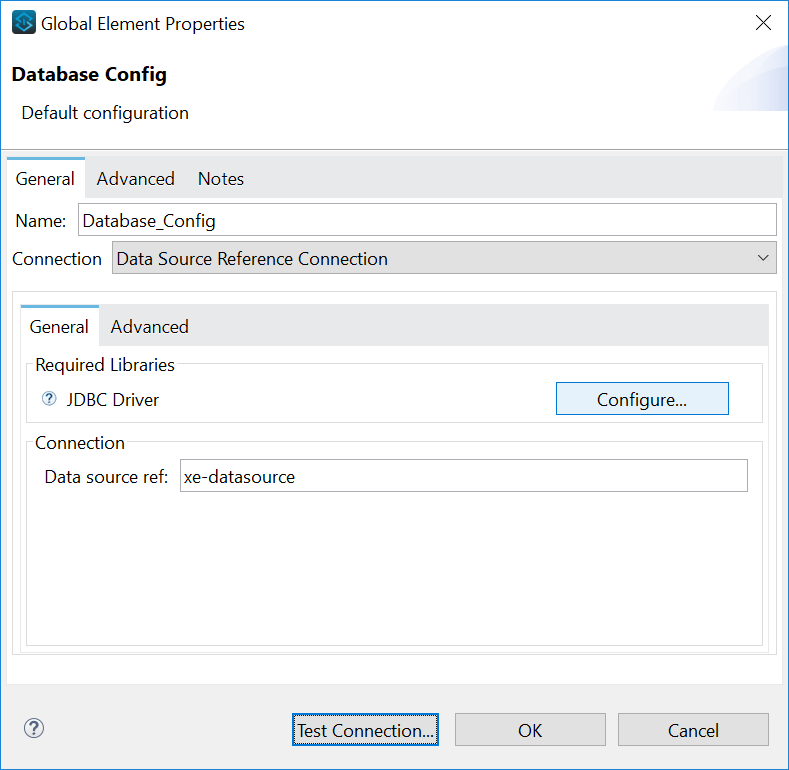

Now create a DataSorce global element

C3P0 Spring database connector



We will connect with the Oracle XE database

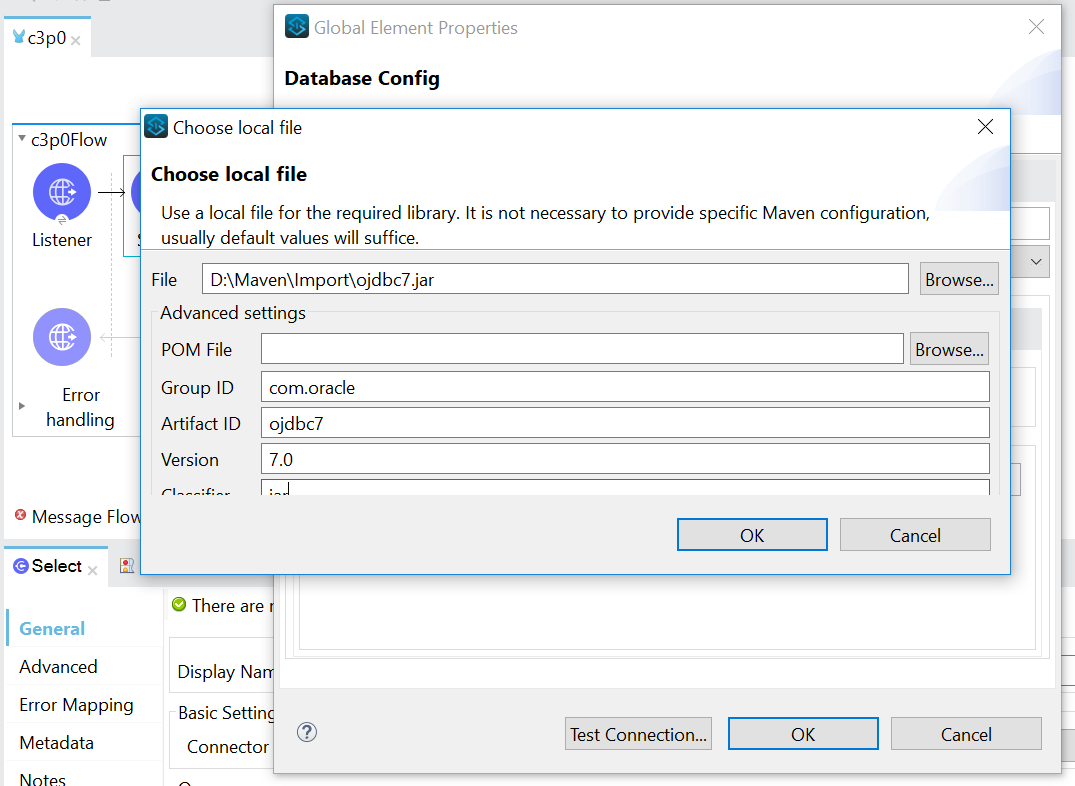

Add ojdbc7.jar in project – click configure

C3P0 Spring database connector



Import the jar in local m2 repository

C3P0 Spring database connector



Test the connection

C3P0 Spring database connector



Click ok

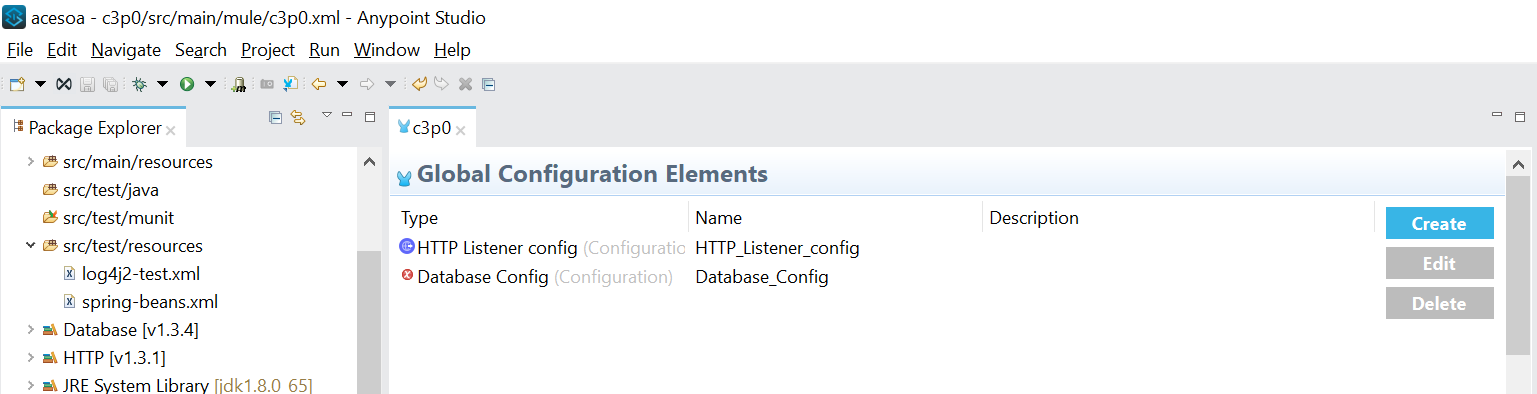

It will show the entry in error, but we can ignore it

C3P0 Spring database connector

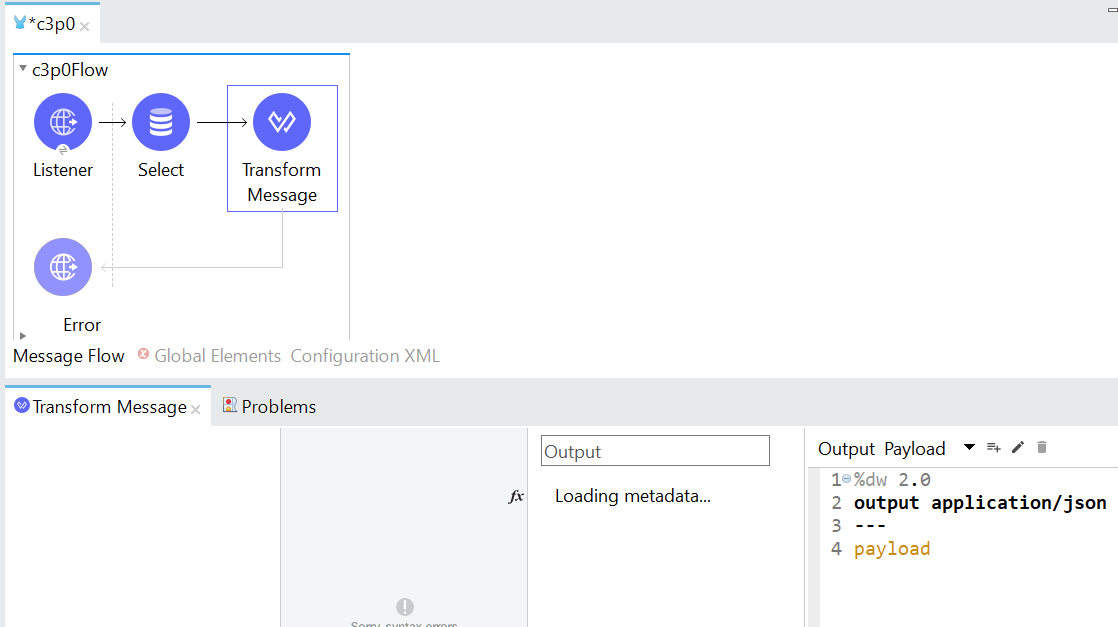

Add a select component in mule flow



Add a json transformation

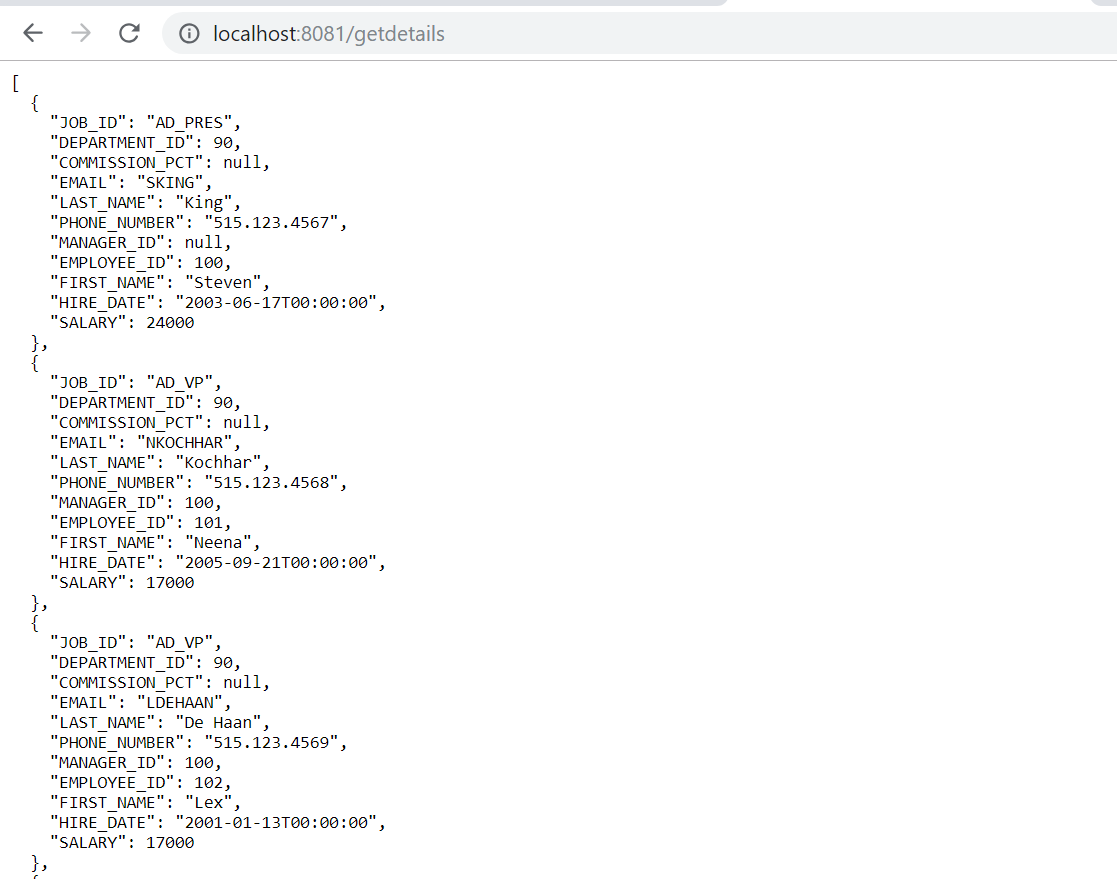

Now if we call the API it will return all the rows in employees table



For more details on c3p0 – please go through the c3p0 details – https://www.mchange.com/projects/c3p0

Source code for the project – http://mulesy.com/wp-content/uploads/2018/12/c3p0.zip


Thank you for taking out time to read the above post. Hope you found it useful. In case of any questions, feel free to comment below. Also, if you are keen on knowing about a specific topic, happy to explore your recommendations as well.

For any latest updates or posts on our website, you can follow us on LinkedIn. Look forward to connecting with you there.
