Azure AD as Client Provider in MuleSOFt



Dynamic client registration to configure Azure Active Directory (Azure AD) client management with Anypoint Platform. Using Azure AD as a client provider enables you to authenticate and authorize API consumers with your existing configurations. Azure AD configuration in Anypoint Platform also provides a stateless microservice to convert OAuth 2.0 client application registration requests to requests supported by Azure AD. Lets see how we add Azure AD as client provider in Mulesoft.



To show how we can configure this in Anypoint platform, please follow below steps

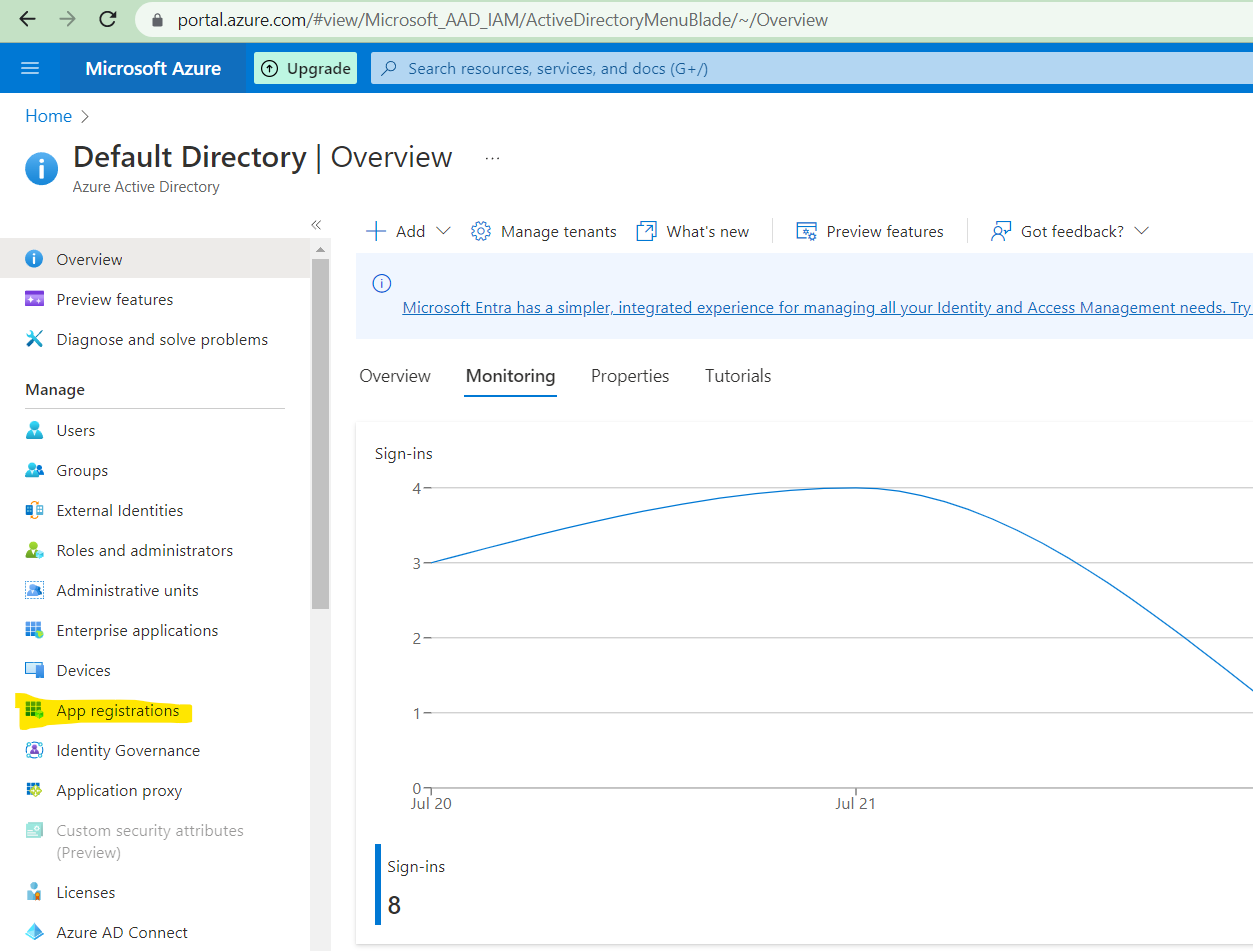

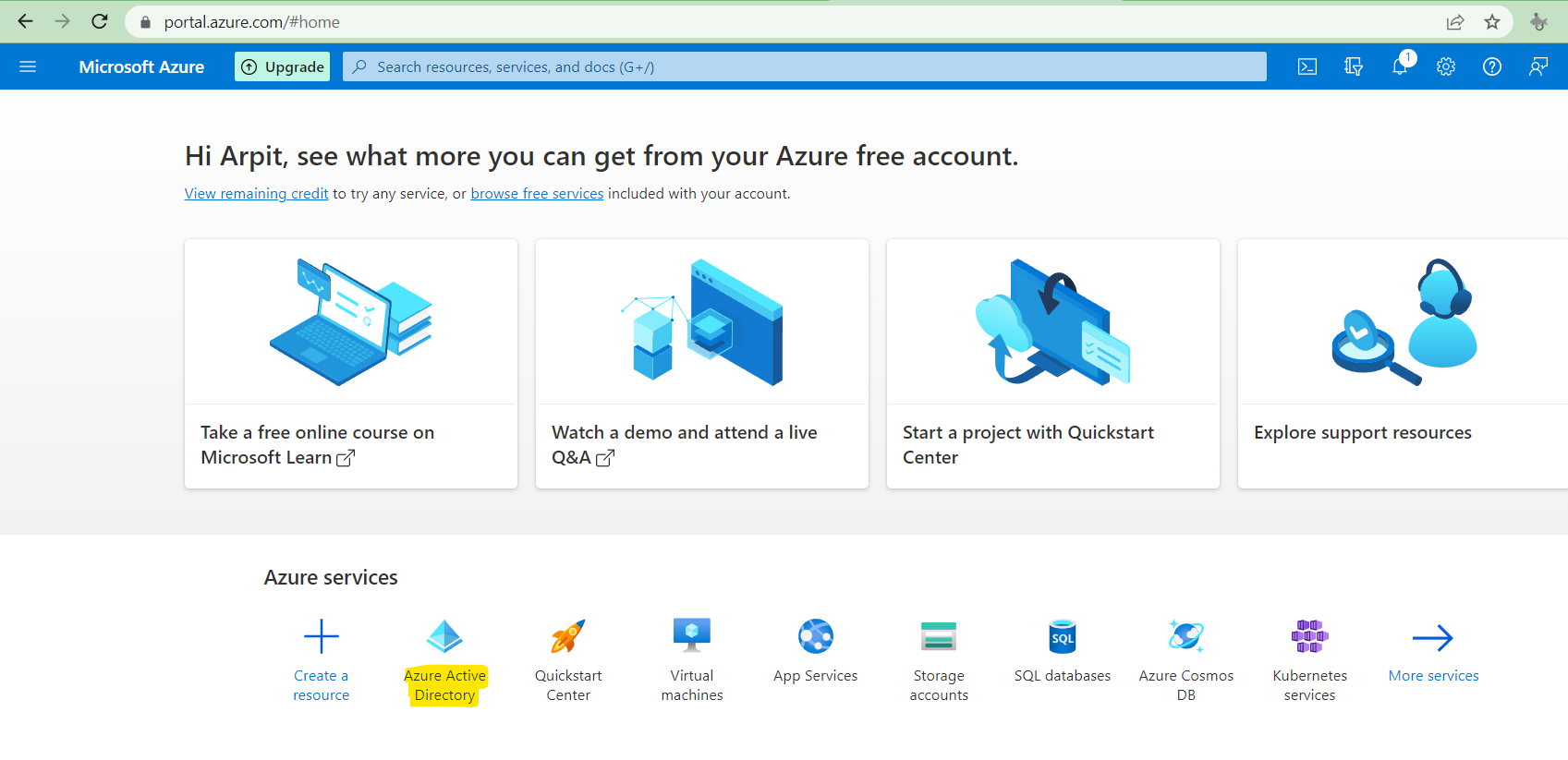

Login to Azure portal and click on Active directory

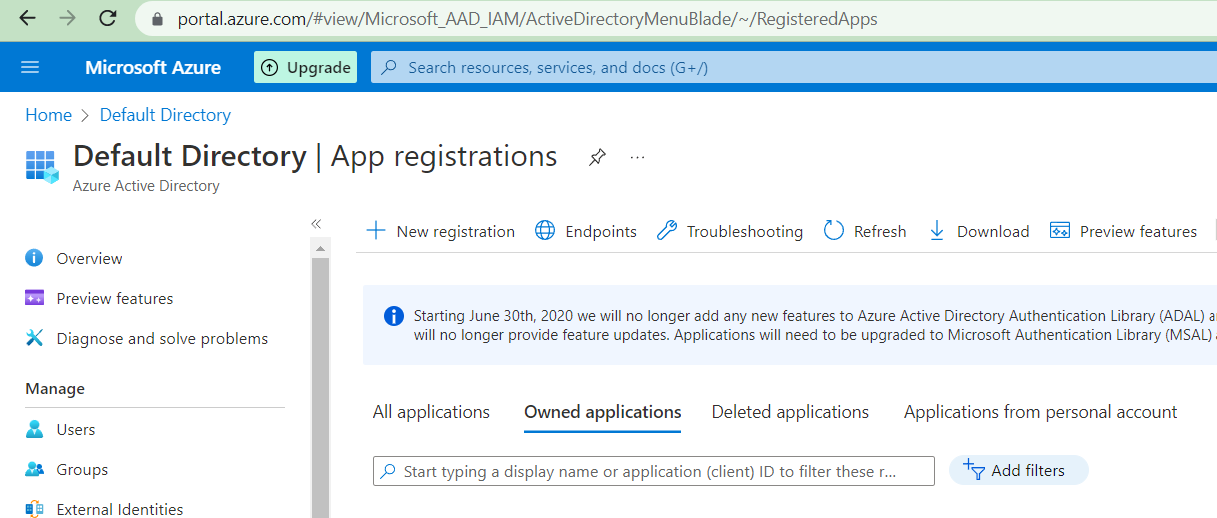

Click on App registration



Click on new registration

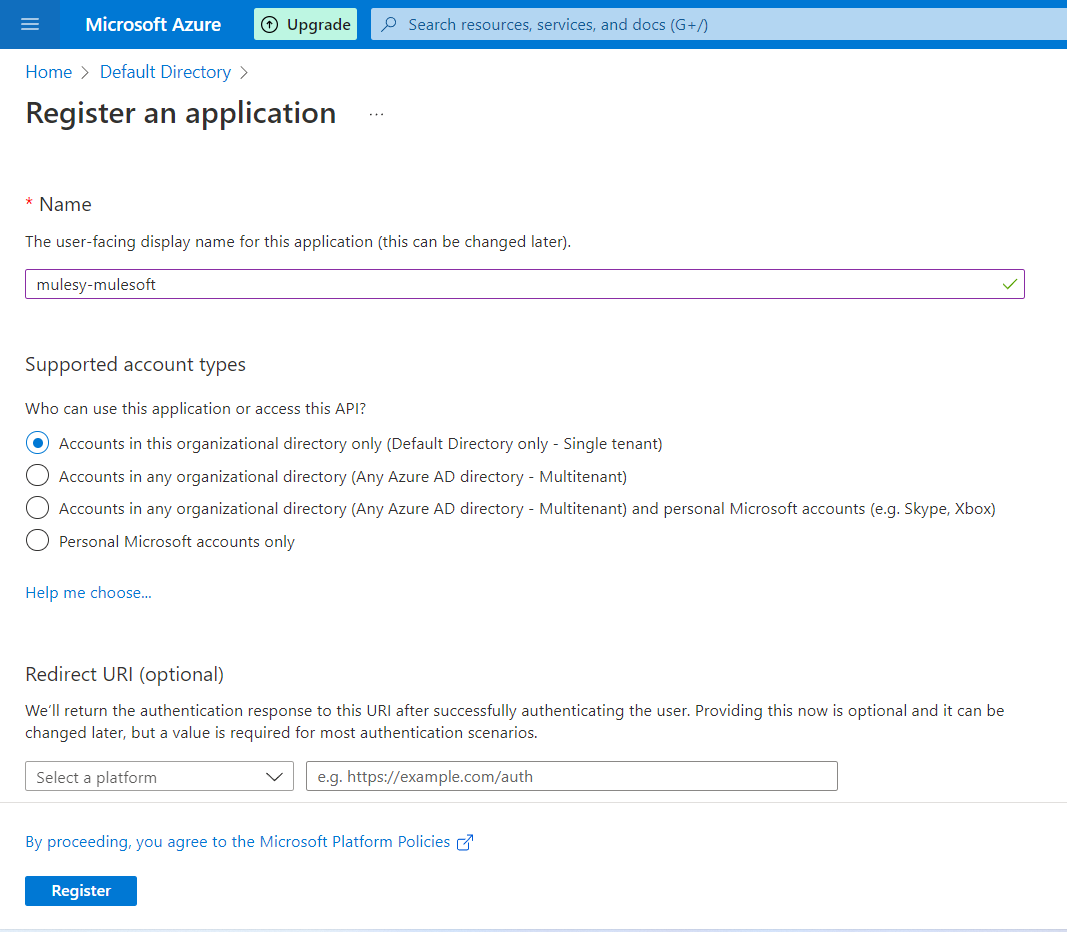

Add the details and click register

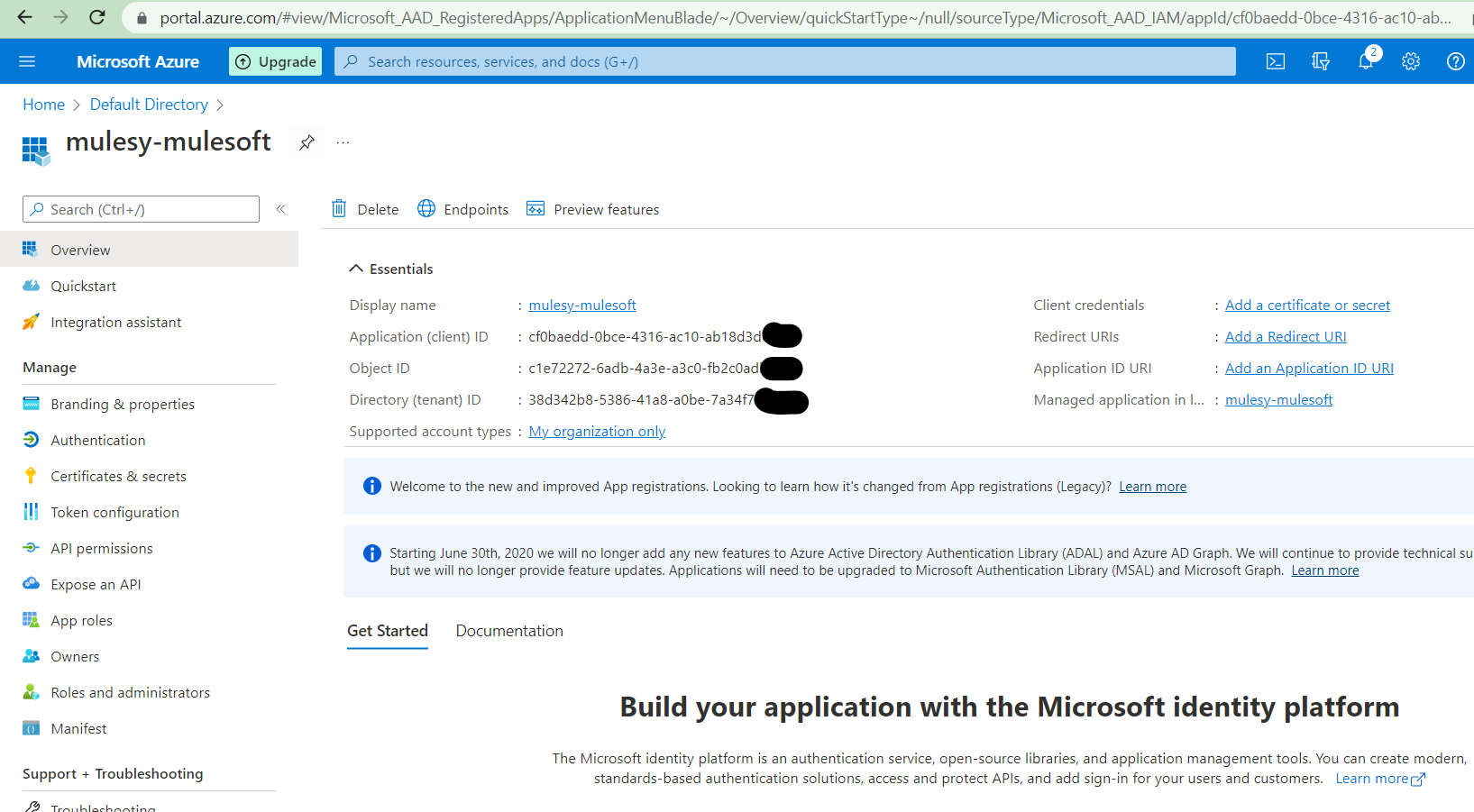

Copy client id and tenant id

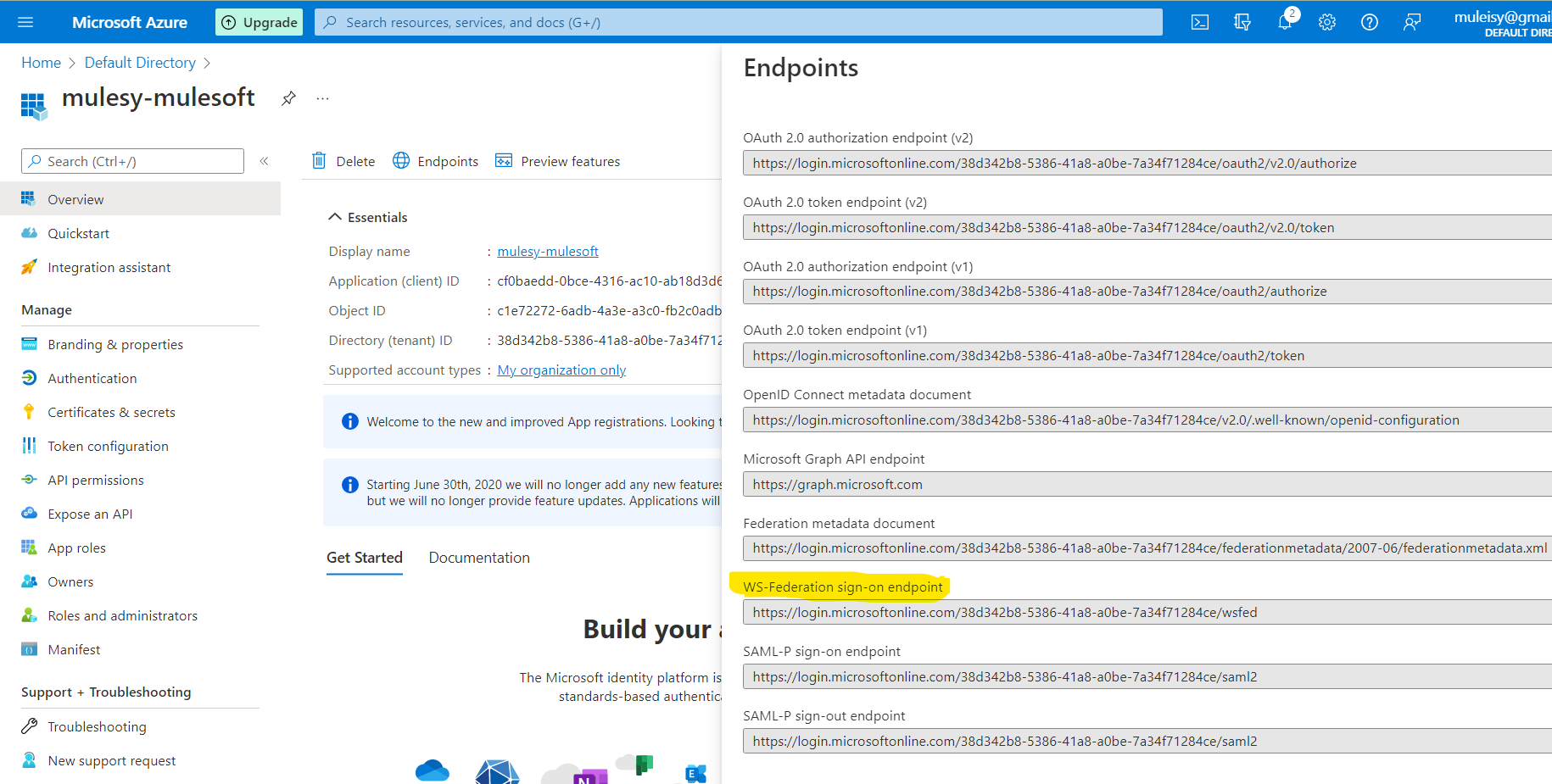

Click on endpoints and copy WS-Federation sign-on endpoint this will act as issuer id in client management configuration

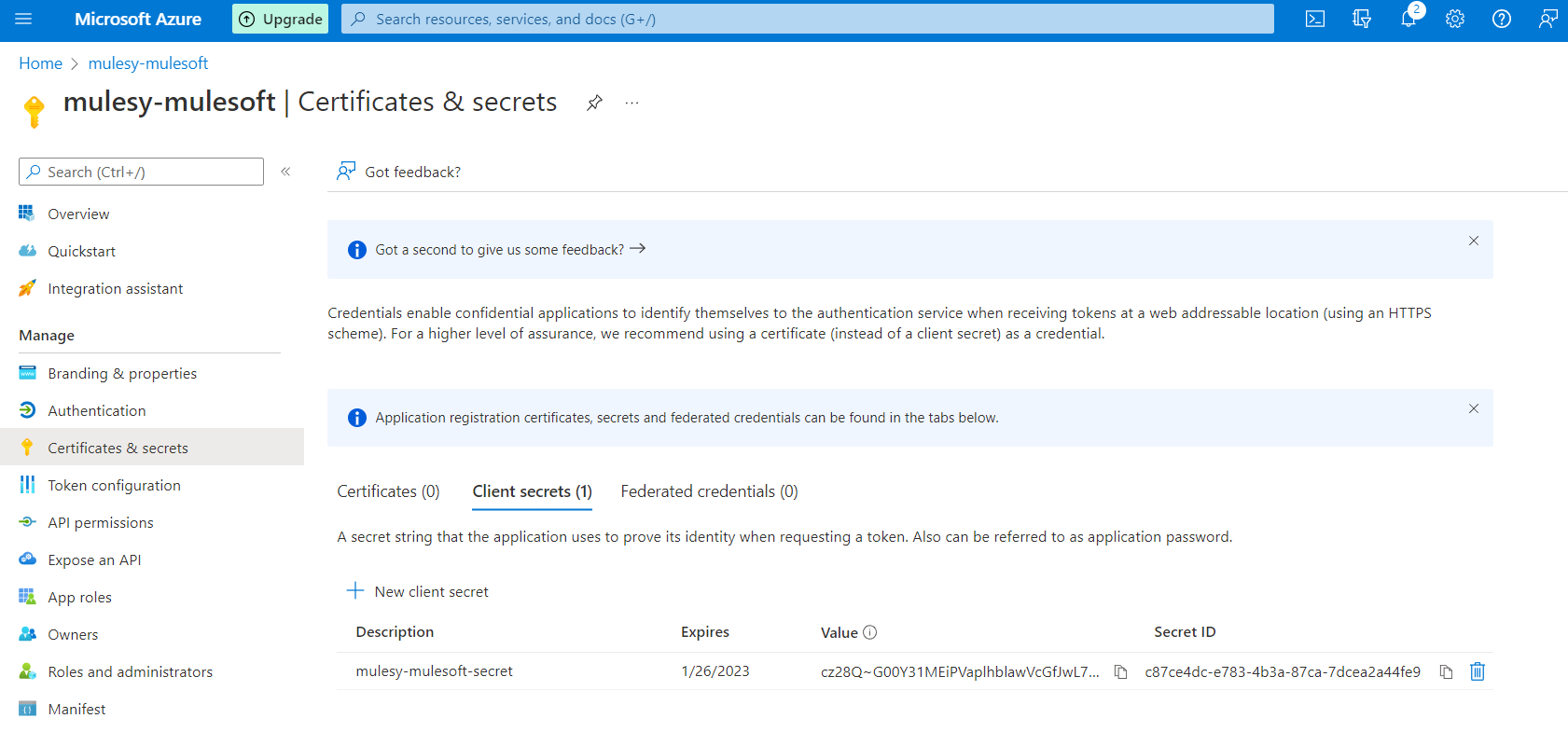

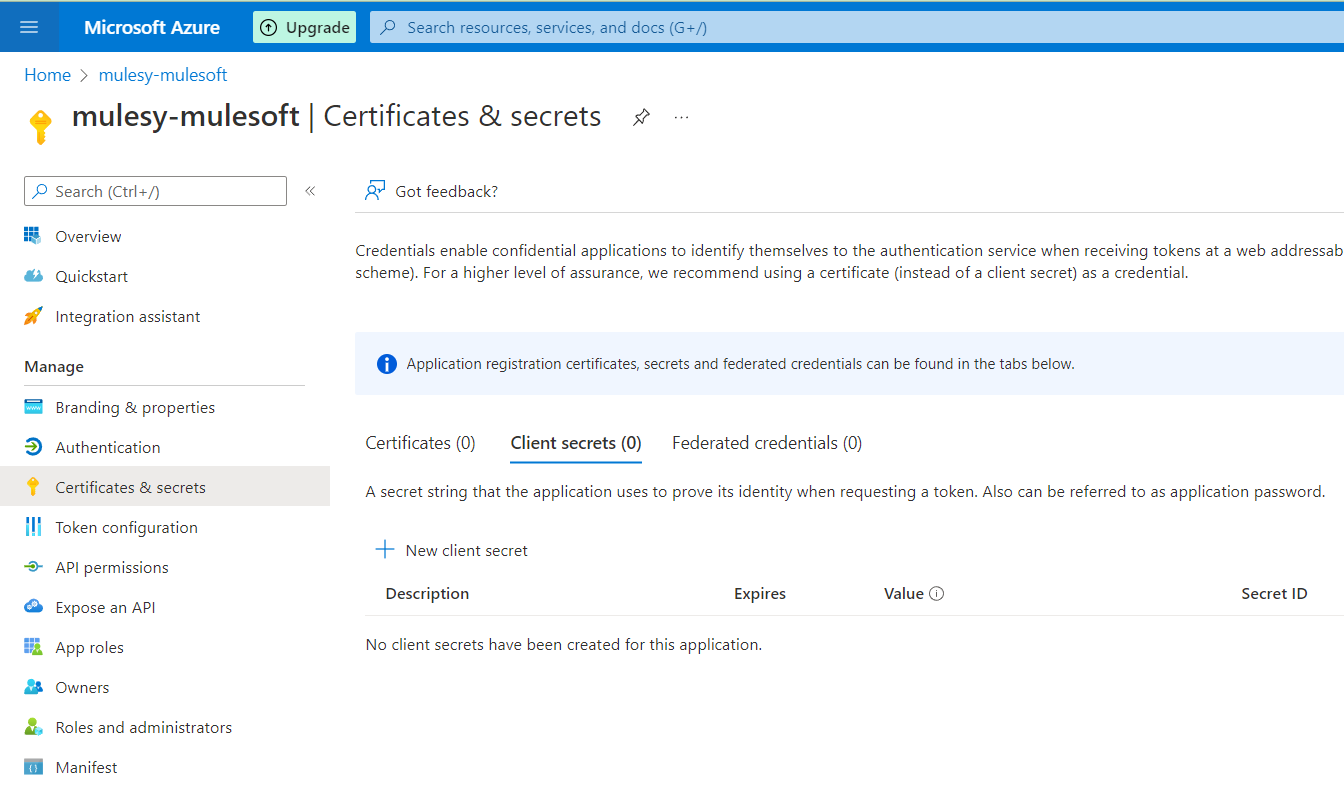

Click on certificate and secrets -> new client secret



Copy the secret value (value will be shown only once so copy and save it to secure location)

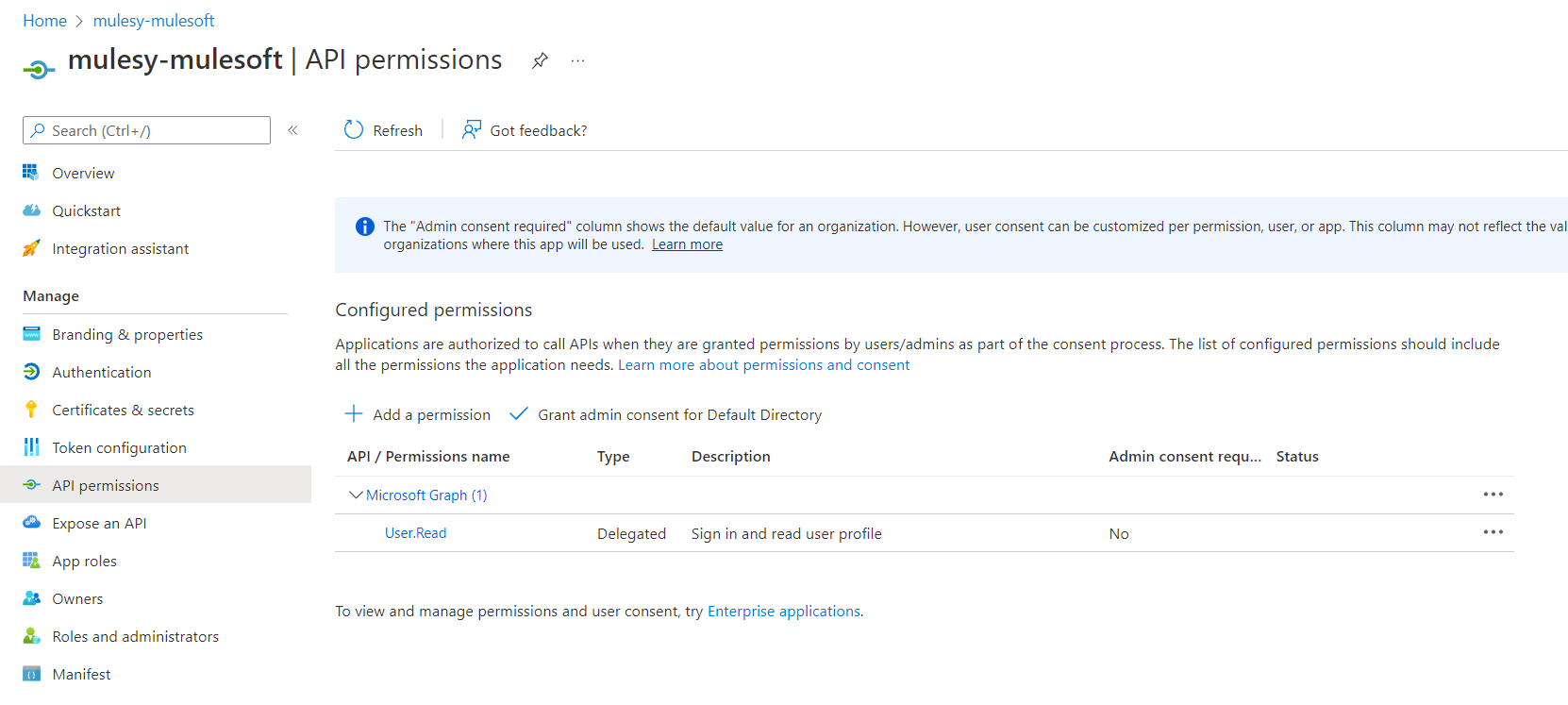

Now click on API permission and click add permission

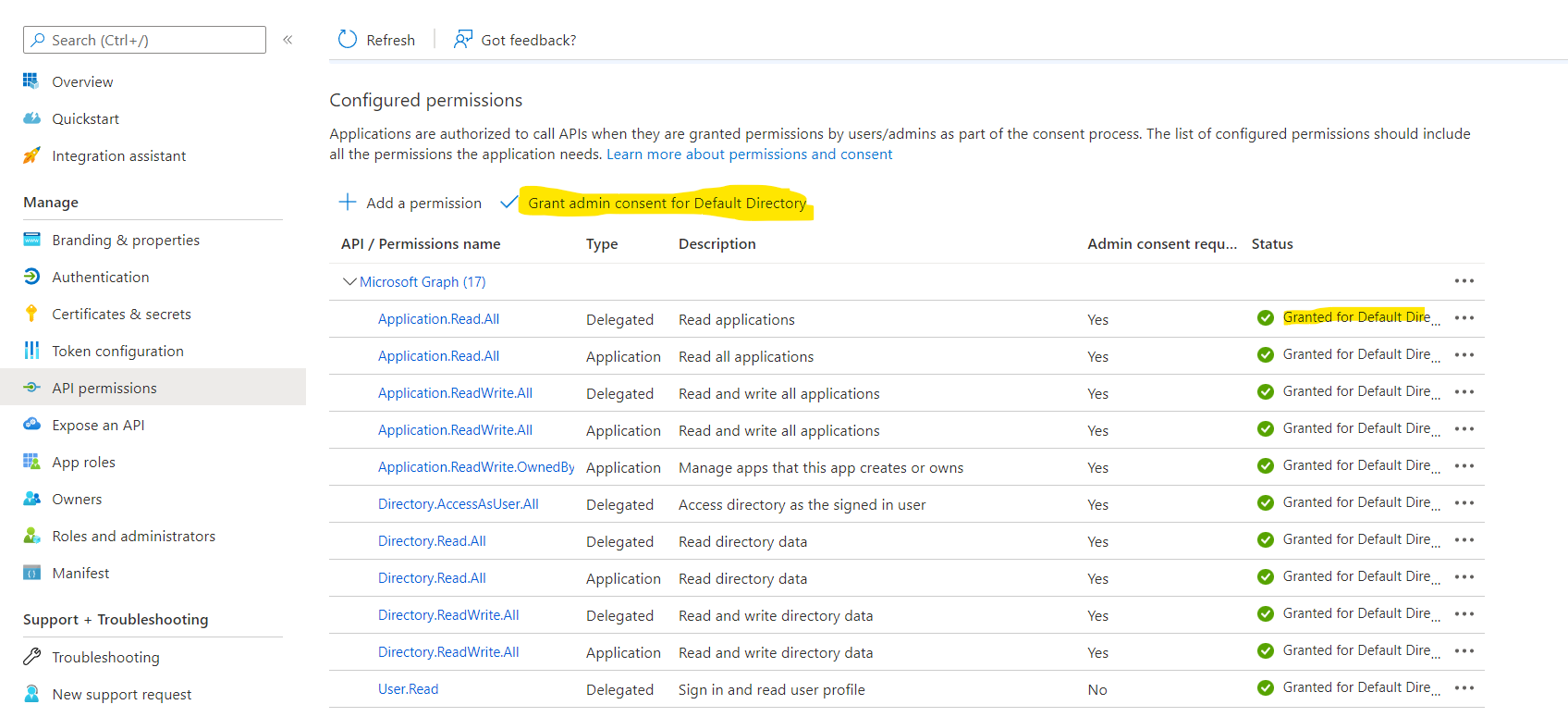

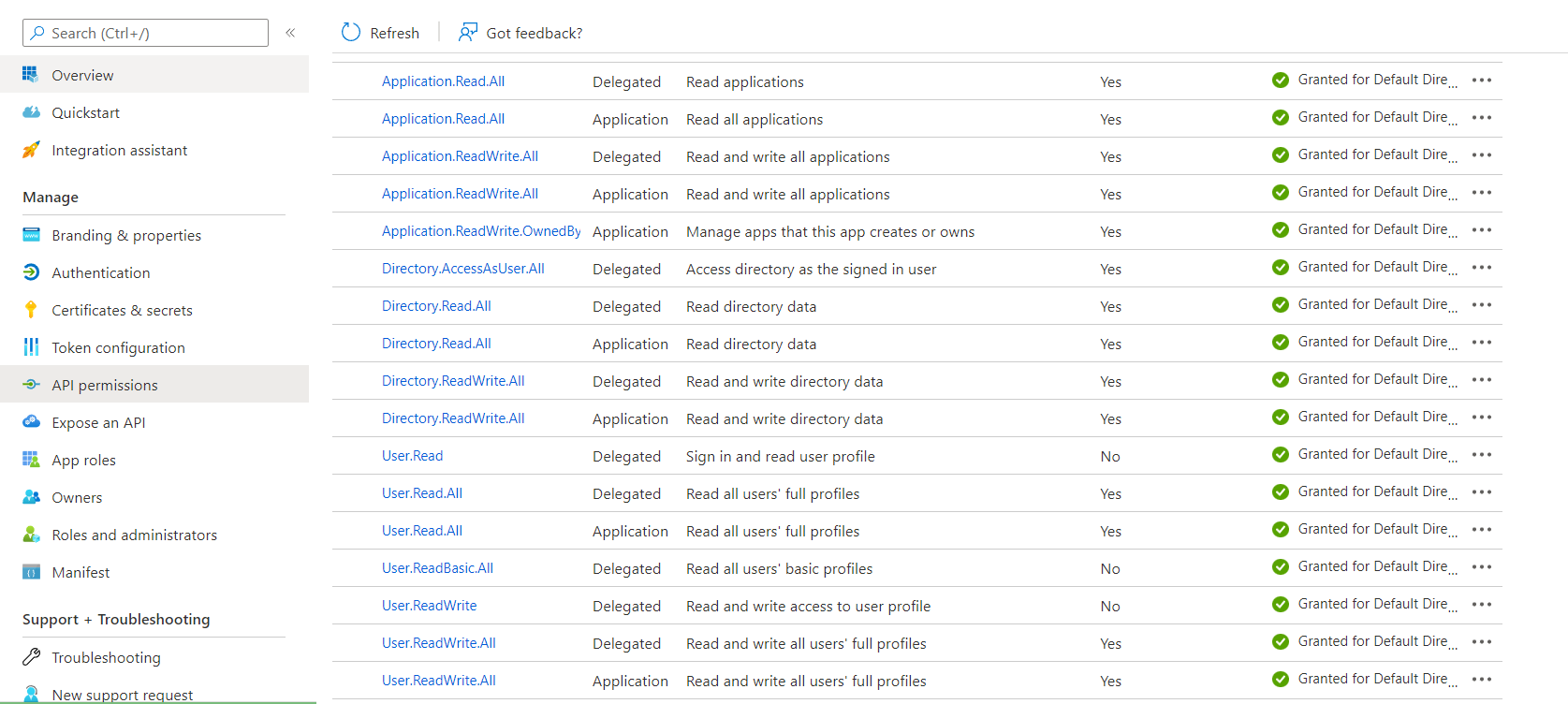

Add all the permission shown as below



Once added click on grant admin access for default directory



With this we are now done with the azure configuration and can now do the required configuration on Anypoint platform

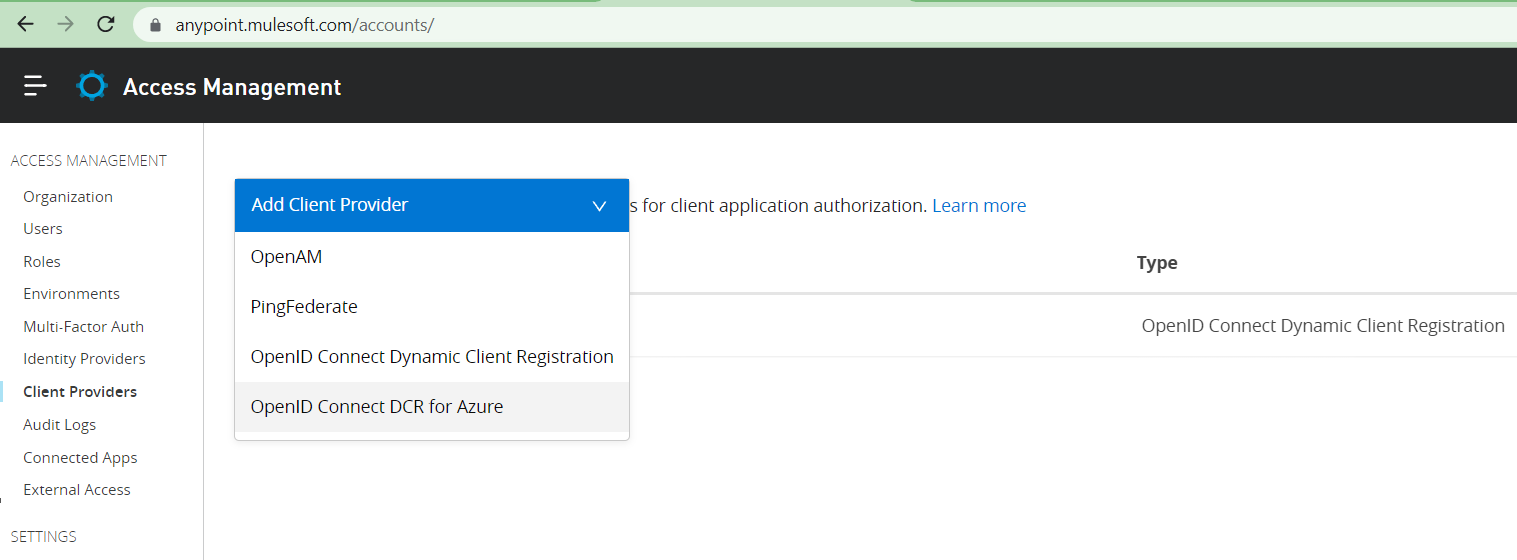

Click Access Management -> Client Providers -> Add Client Provider -> OpenID Connect DCR for Azure



Add the details

IssuerWS-Federation sign-on endpoint

Tenant Id, Client Id and Client Secret from the Azure portal

Azure AD as Client Provider in Mulesoft



Click on Create or Save

Azure AD as Client Provider in Mulesoft

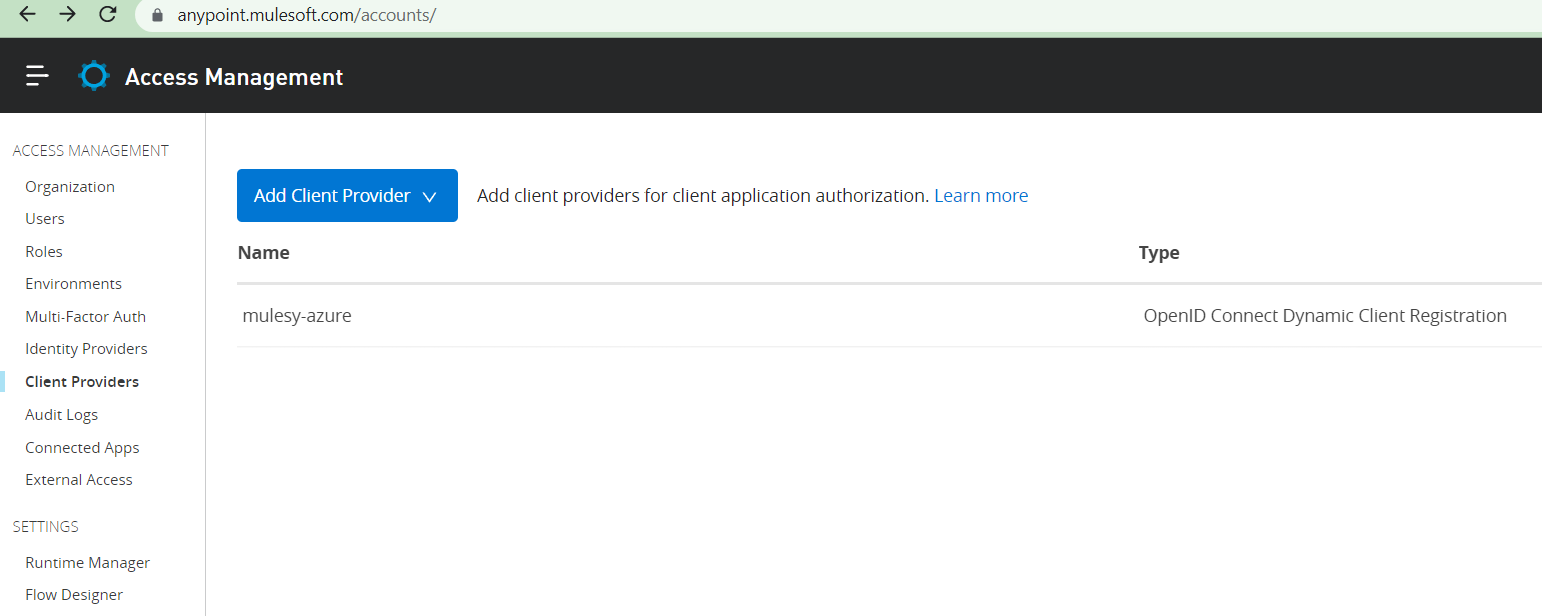

This will create the configuration

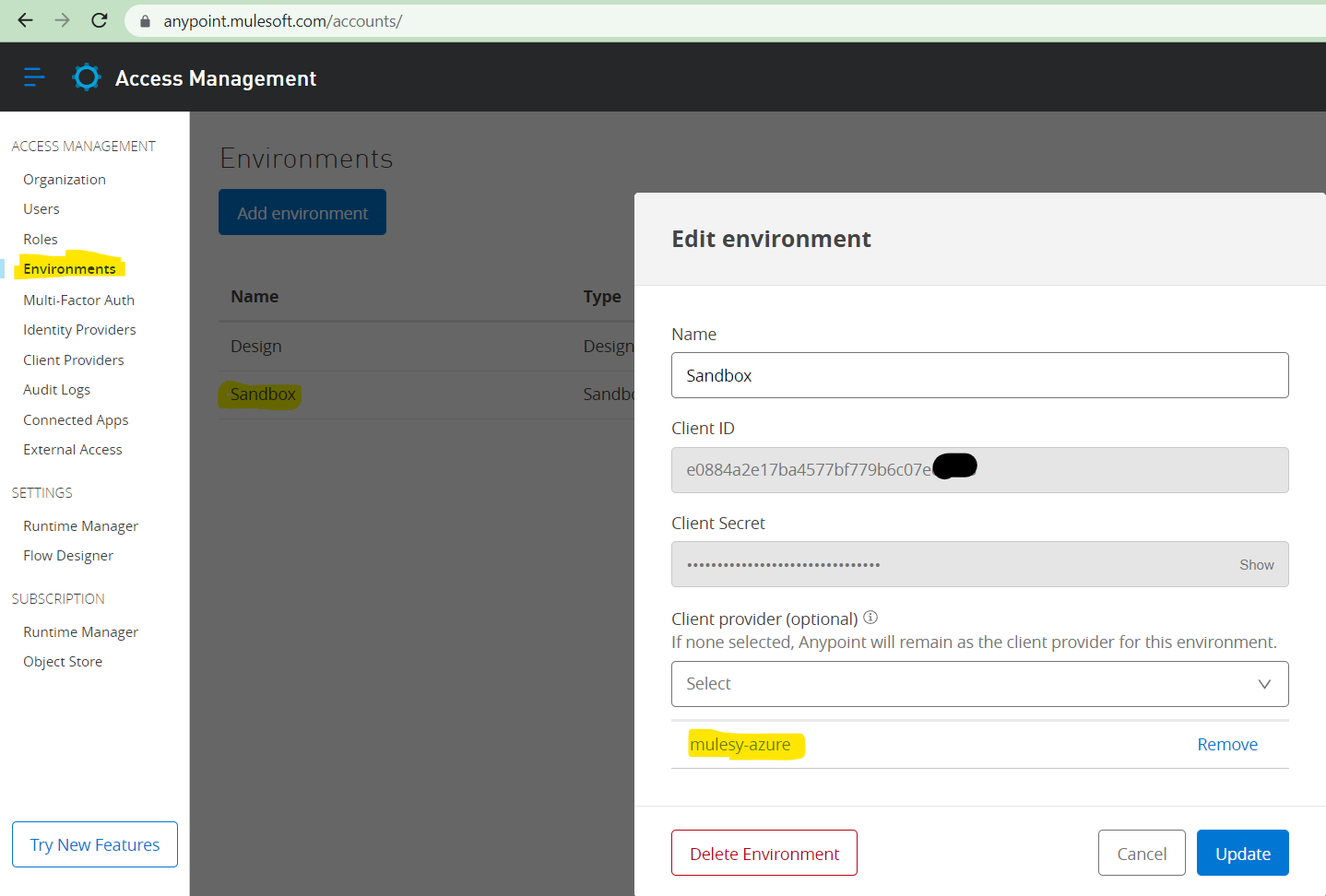

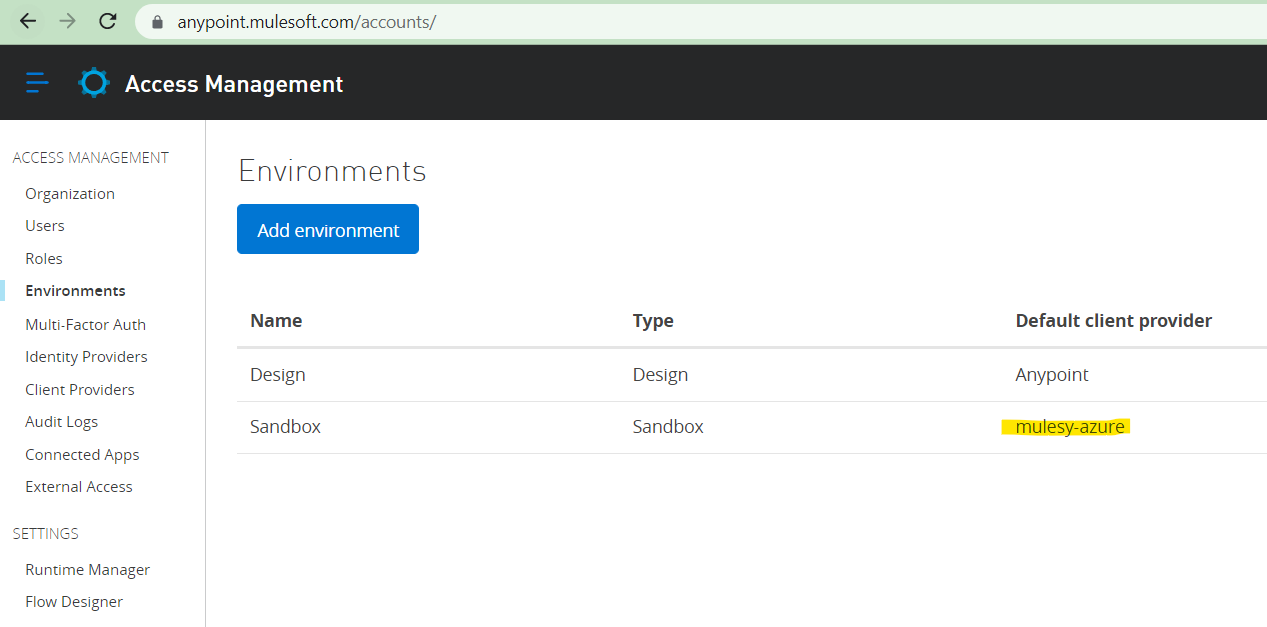

Click on the Environment and select the environment where we want to add it as client management and click on update

Azure AD as Client Provider in Mulesoft



Environment configuration is updated now

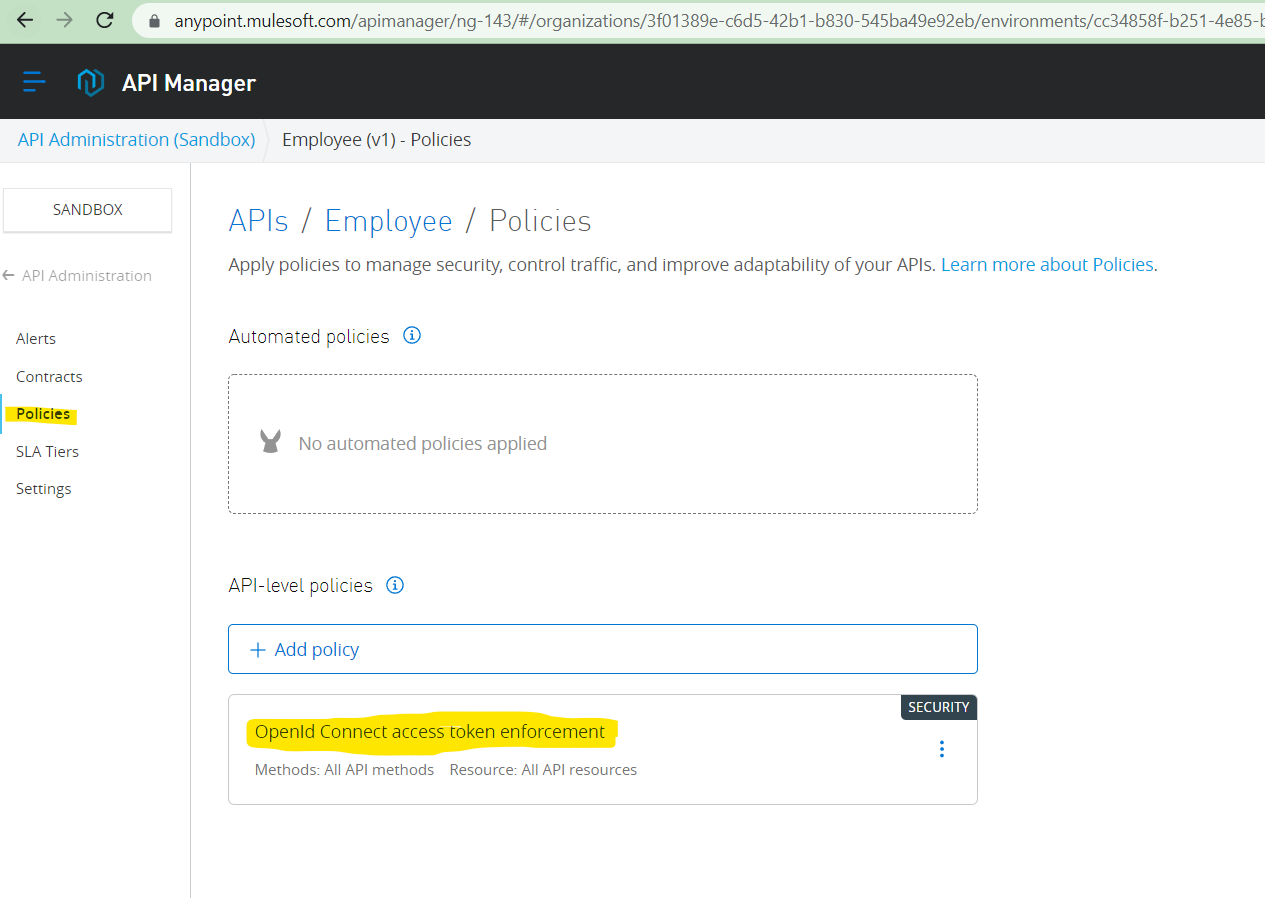

Now we have add the OAuth policy to our api in Anypoint Manager

Azure AD as Client Provider in Mulesoft



How to connect API manager with runtime application – please see how we can connect the mulesoft application to API Manager

Now we will create the client app to call the employee API

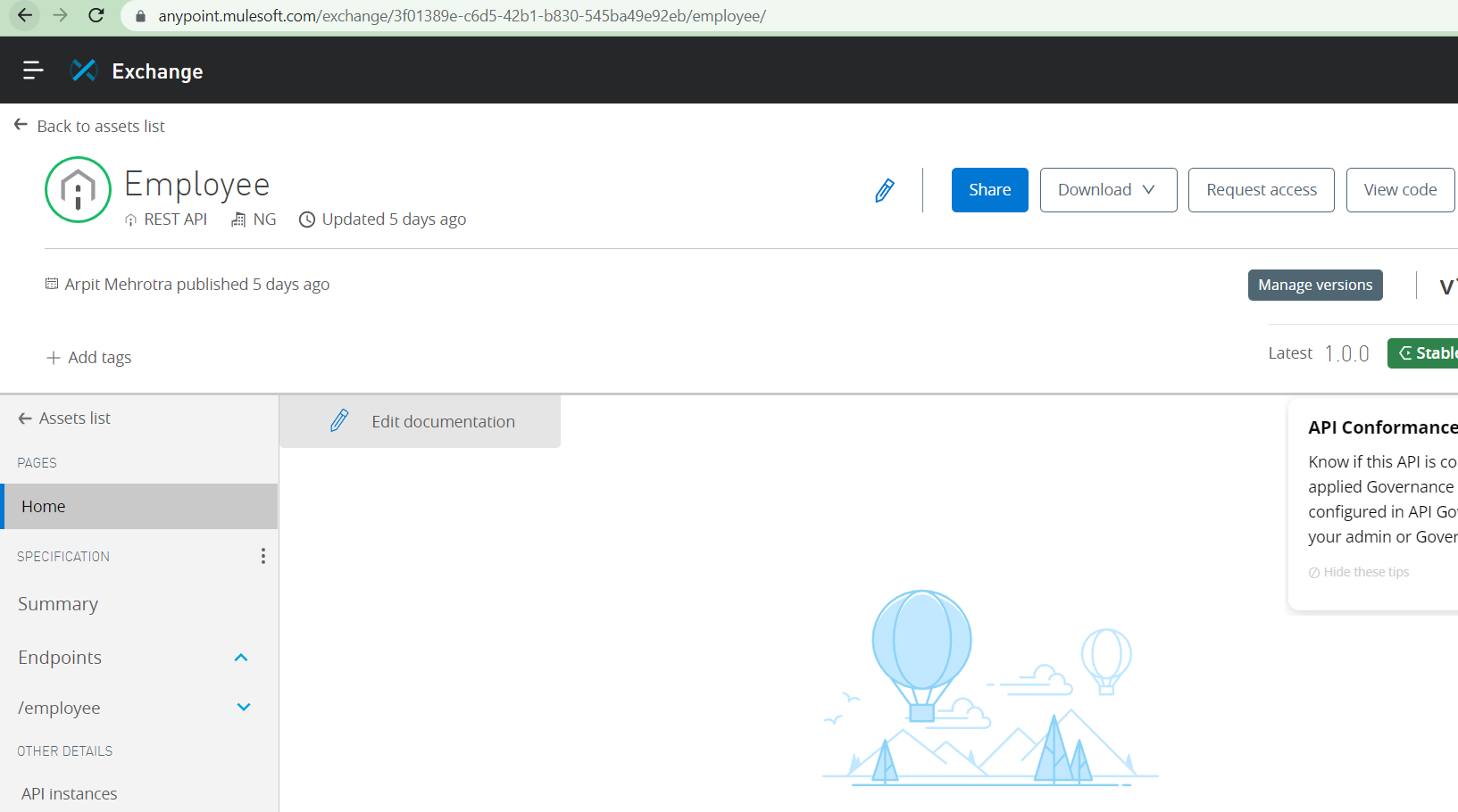

Go to Exchange and select the relevant API and click on Request Access

Azure AD as Client Provider in Mulesoft

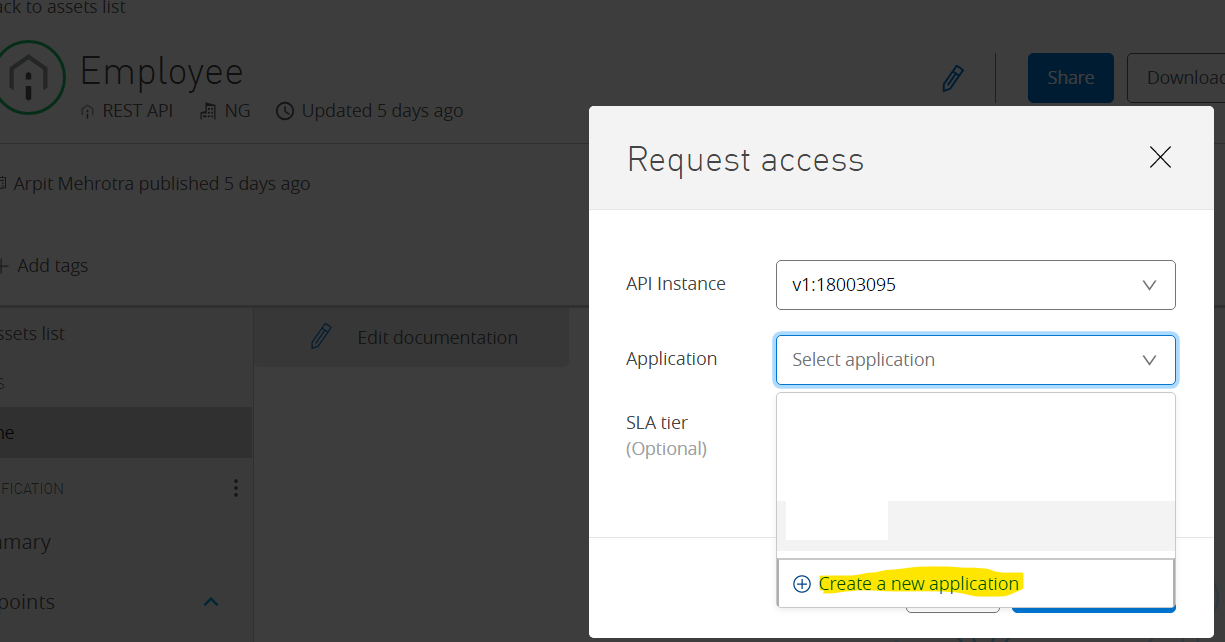

Select create new application

Azure AD as Client Provider in Mulesoft

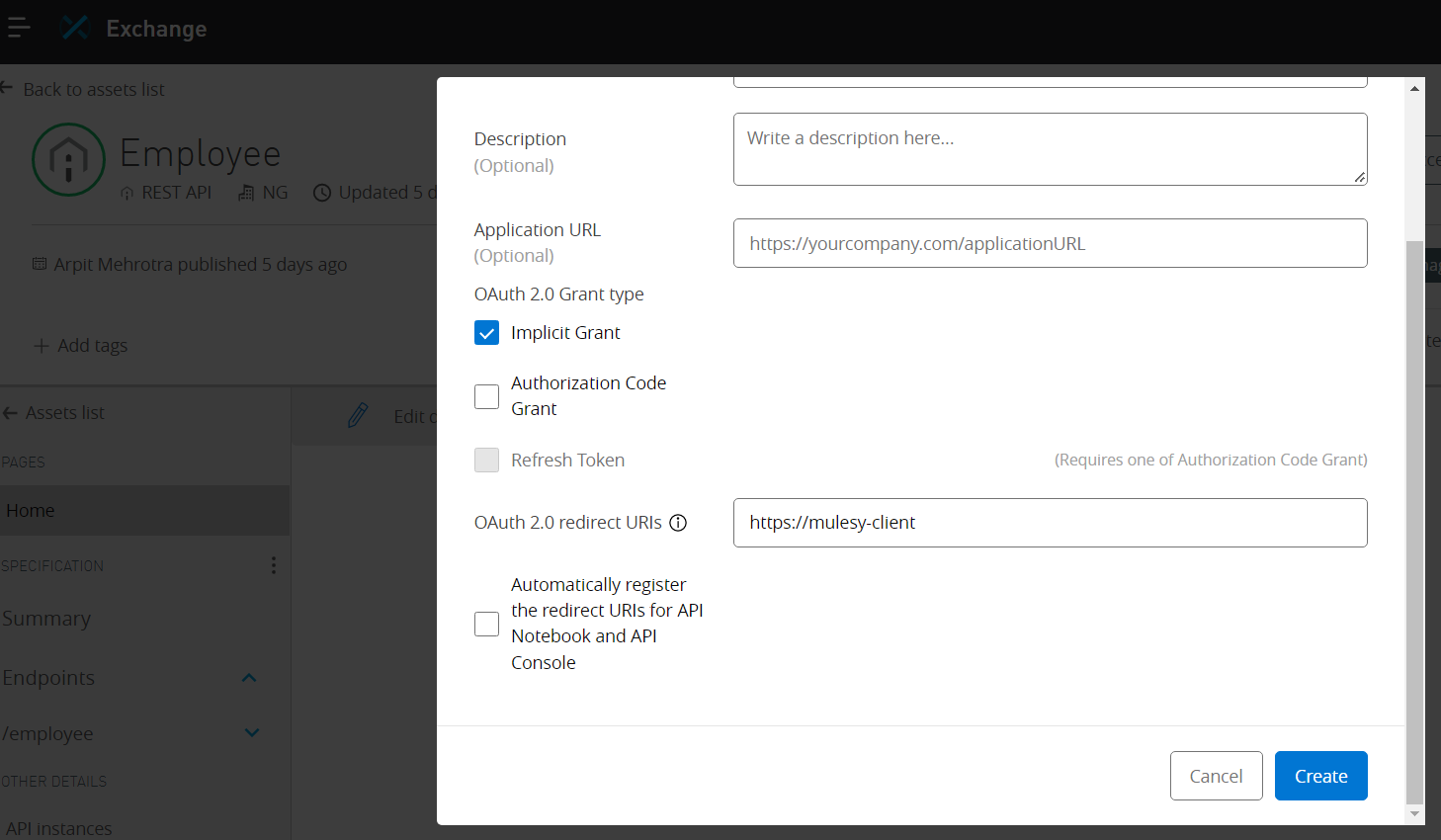

Add the details

Azure AD as Client Provider in Mulesoft



And click on create



Click on Request Access

Azure AD as Client Provider in Mulesoft

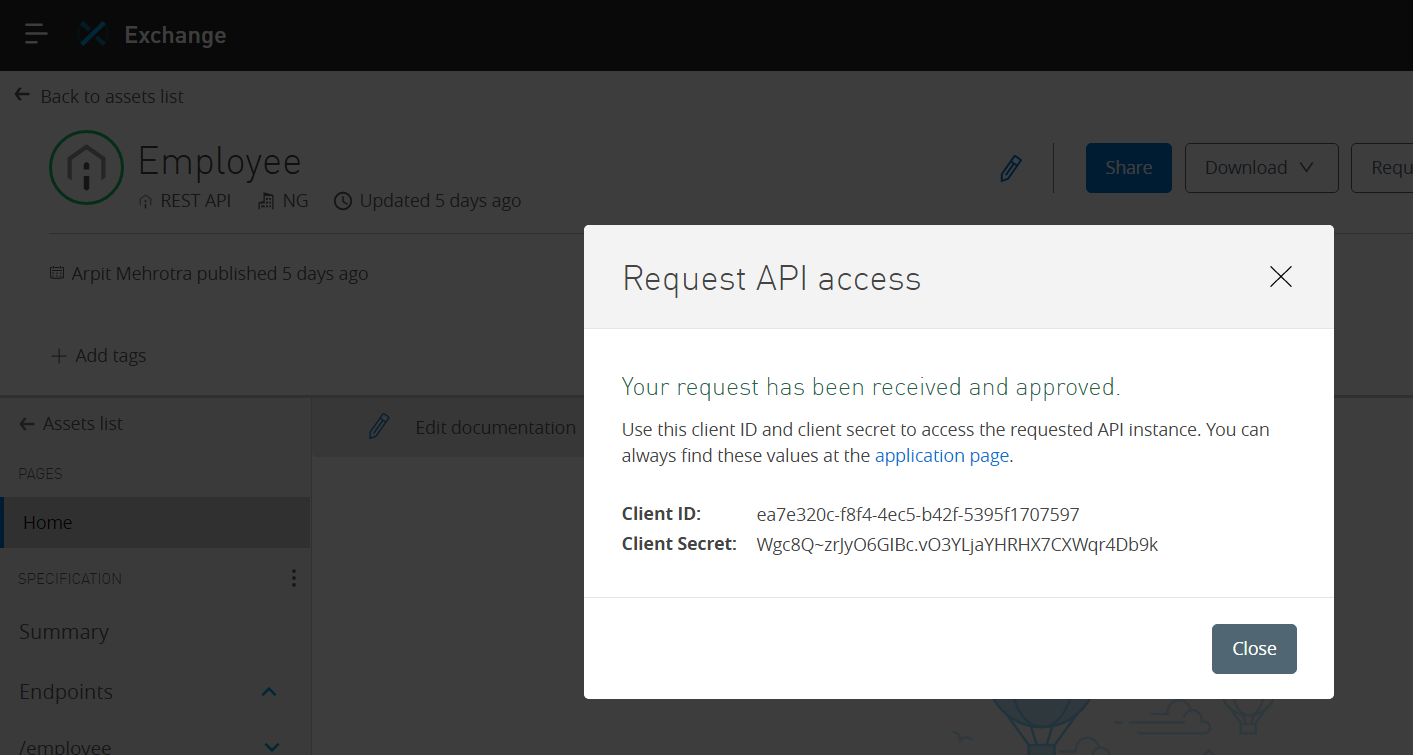

It will show the Client ID and Secret



Sometime it might give HTTP 500 error so just retry

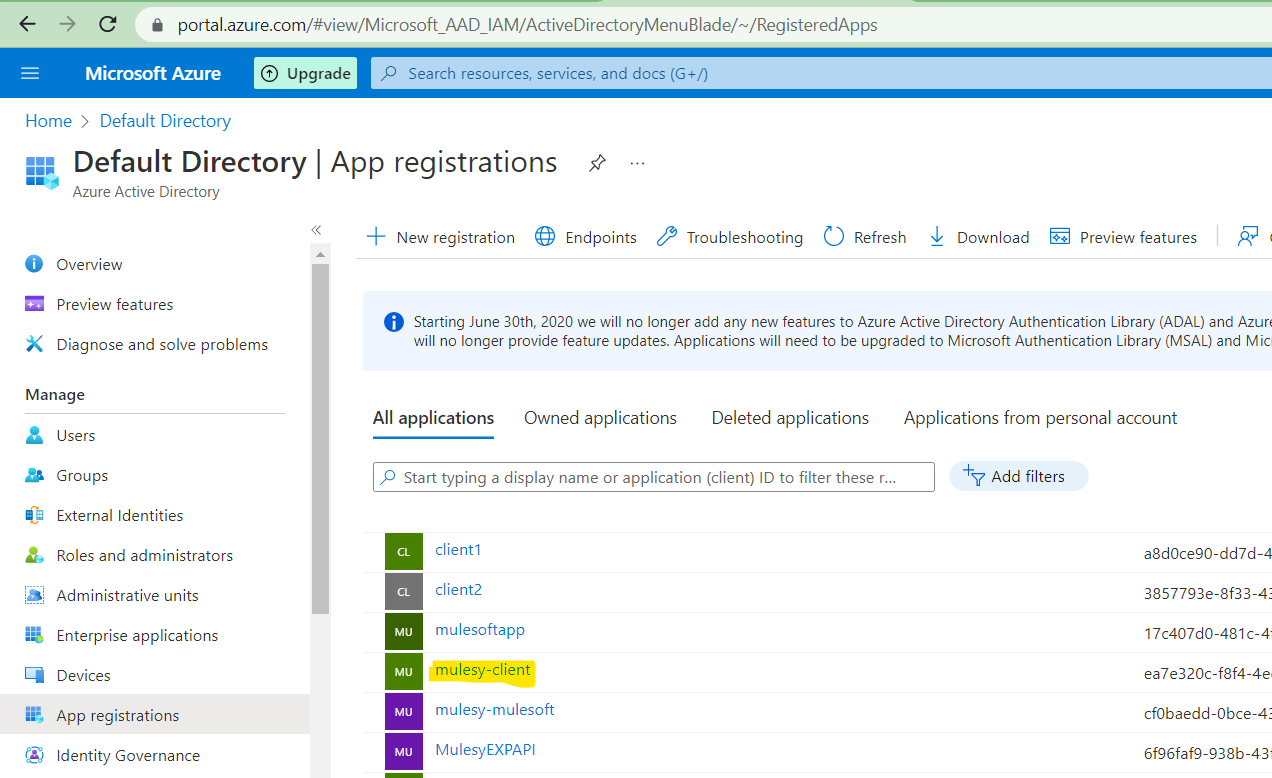

Same Client app will be created at the Azure side as well



This show the client app is now dynamically created on Azure side

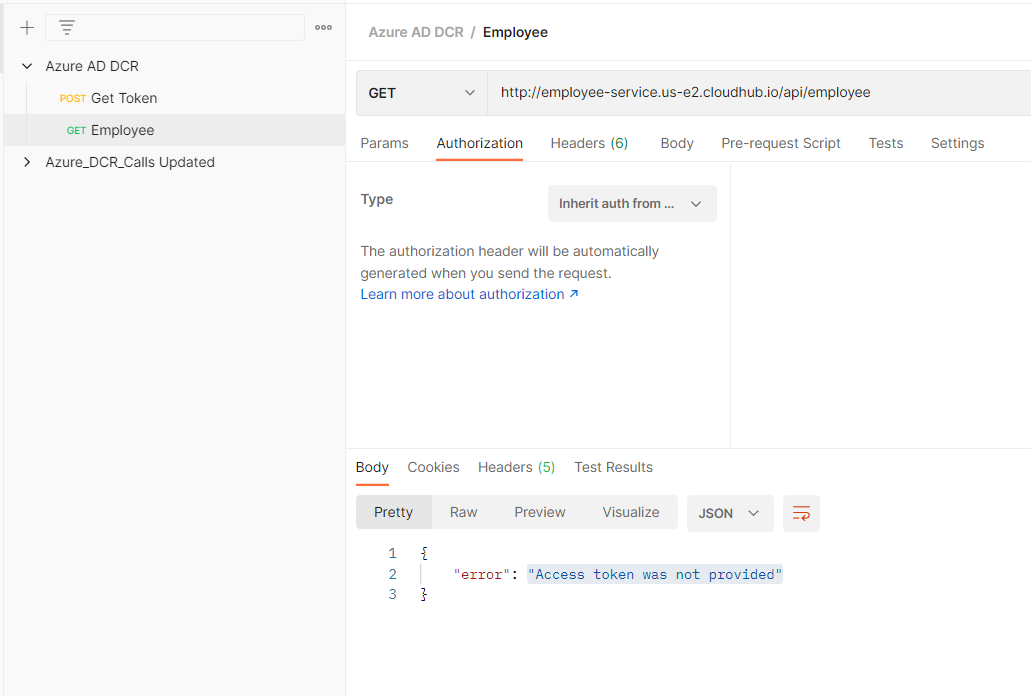

Now if we call the employee API from postman we can see the error “Access token was not provided”

Azure AD as Client Provider in Mulesoft



Now we will call the Azure AD to get the token

To make a call we have to use below details

  • authorize url: https://login.microsoftonline.com/{tenantId}/oauth2/v2.0/authorize
  • token url: https://login.microsoftonline.com/{tenantId}/oauth2/v2.0/token
  • client id: {your client id}
  • client secret: {your client secret}
  • scope: https://graph.microsoft.com/.default

Azure AD as Client Provider in Mulesoft

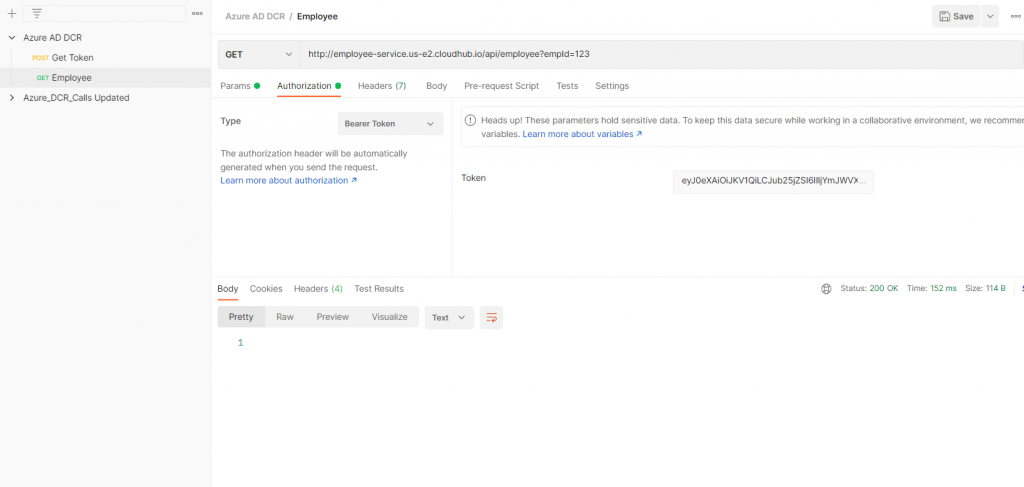

Will use the token and call the actual employee api



So we can see the clients app are dynamically managed on Azure side.

Sample POSTMAN collection – Azure AD DCR.postman_collection


Thank you for taking out time to read the above post. Hope you found it useful. In case of any questions, feel free to comment below. Also, if you are keen on knowing about a specific topic, happy to explore your recommendations as well.
